Waste Water Pillow Tank
Export
Waste Water Pillow Tank
The Waste Water Pillow Tank is a sealed, flexible storage solution designed for the safe containment of waste water, sewage, faecal matter and industrial liquids.
Opis produktu
Developed within the Waterbase W product line, it enables rapid deployment of sanitary infrastructure for temporary installations such as container bases, modular buildings and mobile housing. Constructed from multi-layer technical fabric resistant to hydrolysis and diluted chemicals, the tank is protected with a UV-resistant lacquer for long-term outdoor durability. Its fully flexible design requires no permanent ground anchoring and can be installed on prepared surfaces such as grass, concrete or sand.
The tank can be deployed in up to 30 minutes, while its lightweight, foldable construction ensures easy transport and relocation. High-frequency (HF) welded joints provide reliable tightness, supported by a 7-year leak-tightness warranty.
Key Features
- Flexible, sealed tank for waste water, sewage and industrial liquids
- Designed for rapid deployment in temporary infrastructure environments
- No permanent ground connection required
- Installation time up to 30 minutes
- Multi-layer technical fabric resistant to hydrolysis and diluted chemicals
- PVC material protected with UV-resistant lacquer
- Resistant to low temperatures down to -30°C
- Lightweight and easy to transport
- High-frequency (HF) welded seams for durability
- 7-year leak-tightness warranty
- Manufactured in Poland using European-sourced components
- Custom tank sizes available on request (free quotation)
Primary Applications
Temporary sanitary infrastructure • Construction sites • Container and modular bases • Mobile housing • Event infrastructure • Industrial liquid storage • Environmental protection systems
Compliance & Certification
The Waste Water Pillow Tank is manufactured using certified materials and production processes validated through extensive implementation experience and customer consultation.
Product-Market Insight
The Waste Water Pillow Tank is designed for rapid deployment of temporary waste-water storage without the need for permanent infrastructure. It is primarily used in container bases, modular housing, construction sites and mobile facilities, where fast installation, mobility and reliable leak tightness are critical.
Technical data
| Specification | Value |
| Product Line | Waterbase W |
| Tank Type | Closed, flexible pillow tank |
| Application | Storage of waste water, sewage and industrial liquids |
| Installation Surface | Grass, concrete slabs, sand bedding |
| Ground Anchorage | Not required |
| Assembly Time | Up to 30 minutes |
| Main Material | Multi-layer technical fabric |
| Chemical Resistance | Resistant to hydrolysis and diluted mixtures |
| UV Protection | Special protective lacquer |
| Low Temperature Resistance | Down to -30°C |
| Joint Technology | High-frequency (HF) welding |
| Warranty | 7 years (leak tightness) |
| Country of Manufacture | Poland |
| Custom Sizes | Available on request |
Standard Equipment
| Component | Specification |
| Filling / discharge connections | 2 × DN80 with 3″ BSP female thread, with valve |
| Vent | 2″, 1 pc |
| Handles | Integrated in bottom and corners for installation and handling |
| Additional discharge (≥75 m³) | Extra outlet located on opposite short side |
Capacity Variants
| Capacity | Dimensions (L × W) | Max Height |
| 10 m³ | 6.50 × 2.84 m | 0.85 m |
| 15 m³ | 5.80 × 4.45 m | 0.80 m |
| 25 m³ | 6.00 × 5.80 m | 1.00 m |
| 30 m³ | 7.20 × 5.80 m | 1.00 m |
| 50 m³ | 6.65 × 8.77 m | 1.20 m |
| 75 m³ | 8.80 × 8.77 m | 1.30 m |
| 100 m³ | 11.40 × 8.77 m | 1.30 m |
| 150 m³ | 11.95 × 11.74 m | 1.35 m |
| 200 m³ | 15.15 × 11.74 m | 1.40 m |
| 250 m³ | 18.60 × 11.74 m | 1.40 m |
Permitted Media Parameters
| Parameter | Value |
| Liquid Density | Up to 1.1 kg/dm³ |
| pH Range | pH 3–10 |
| Compatible Media | Waste water, sewage, faecal matter, dirty water, industrial water |
Podobne produkty
SA-TSS Self-Adjusting Stabilisation System
SOSnake PVC Double-Coated Hose
Leatherhead Sledge Hammer
VIPER Fire Lance System
Inclined Ram Support LRS-3
Spill Containment Berms
Leatherhead Flat Head Axe
Sharp Edge Protection Covers
Circular Ram Support
PSS Blocks & Wedges Set 2
Firefighting Robot FMBOT 2400

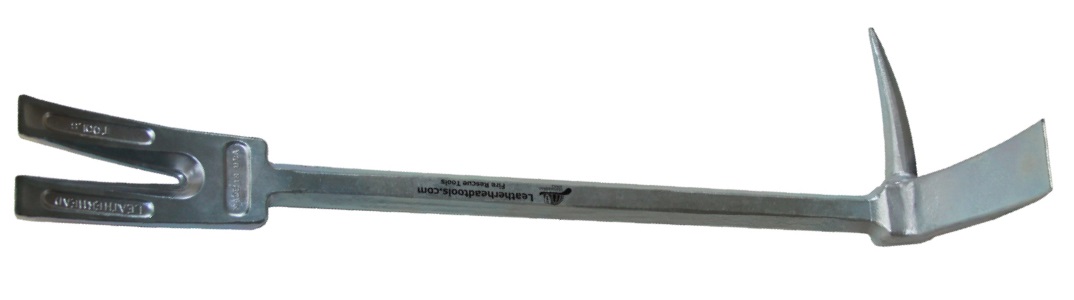

Leatherhead Halligan Bar 42″
