SA-TSS Self-Adjusting Stabilisation System

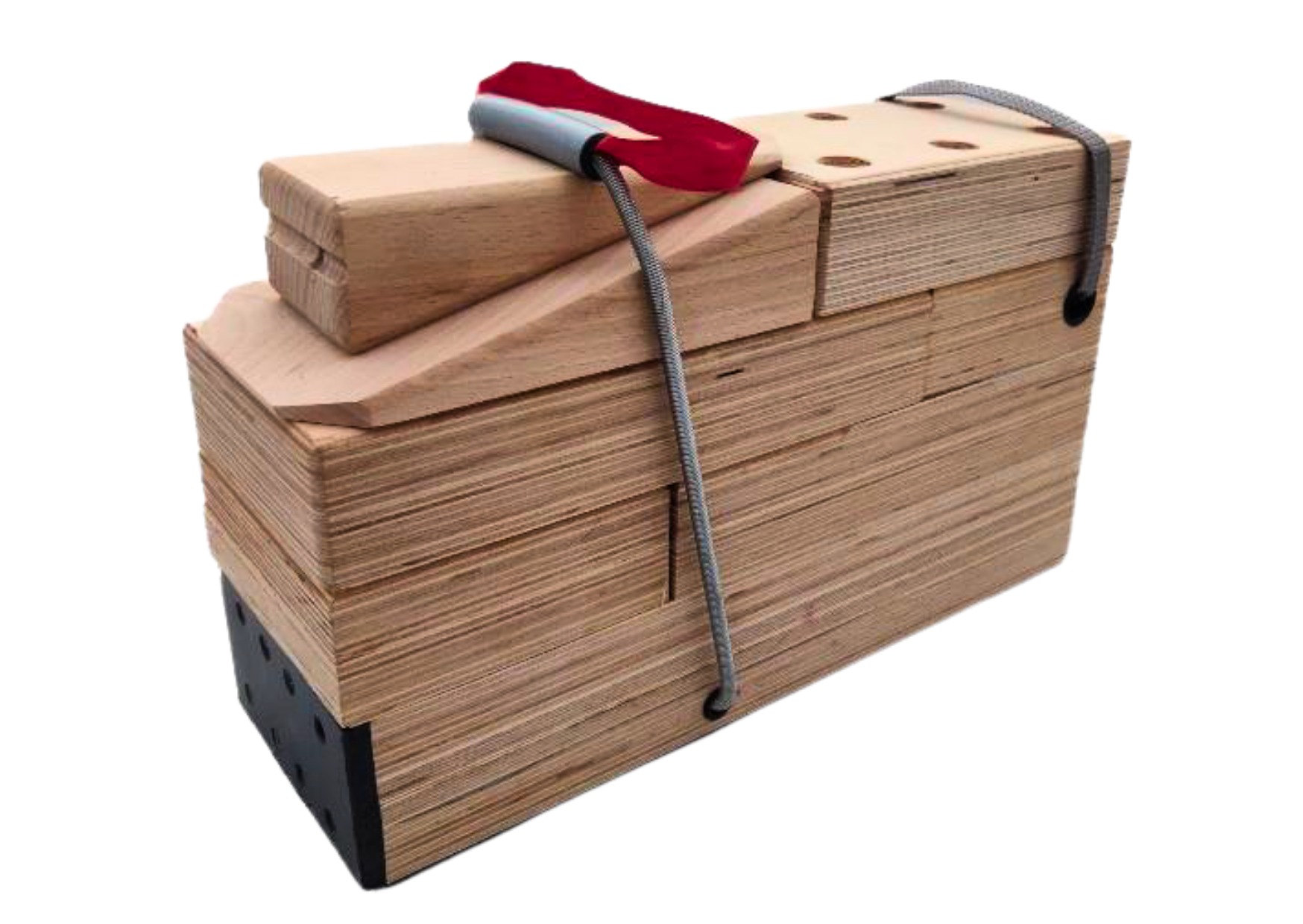

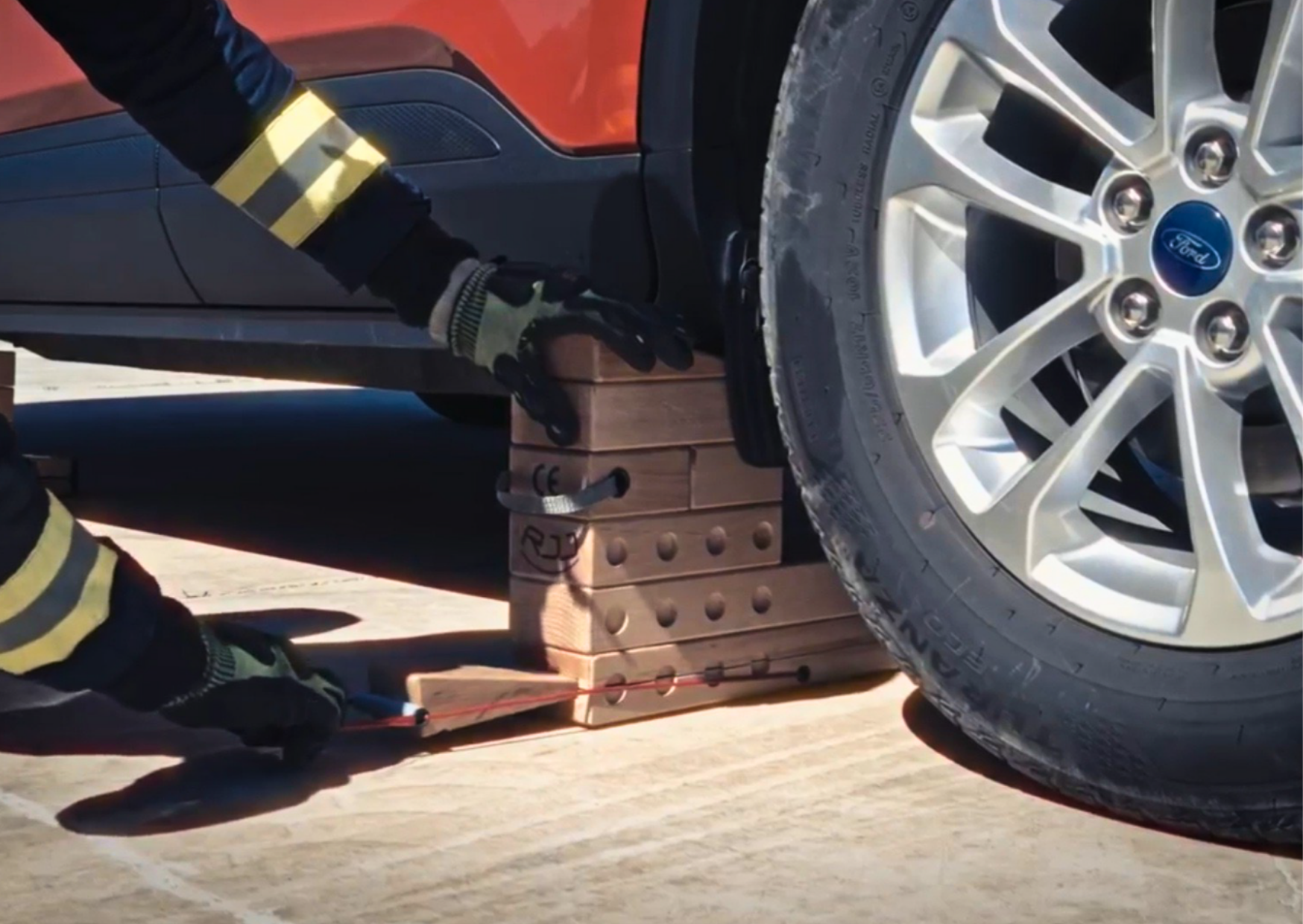

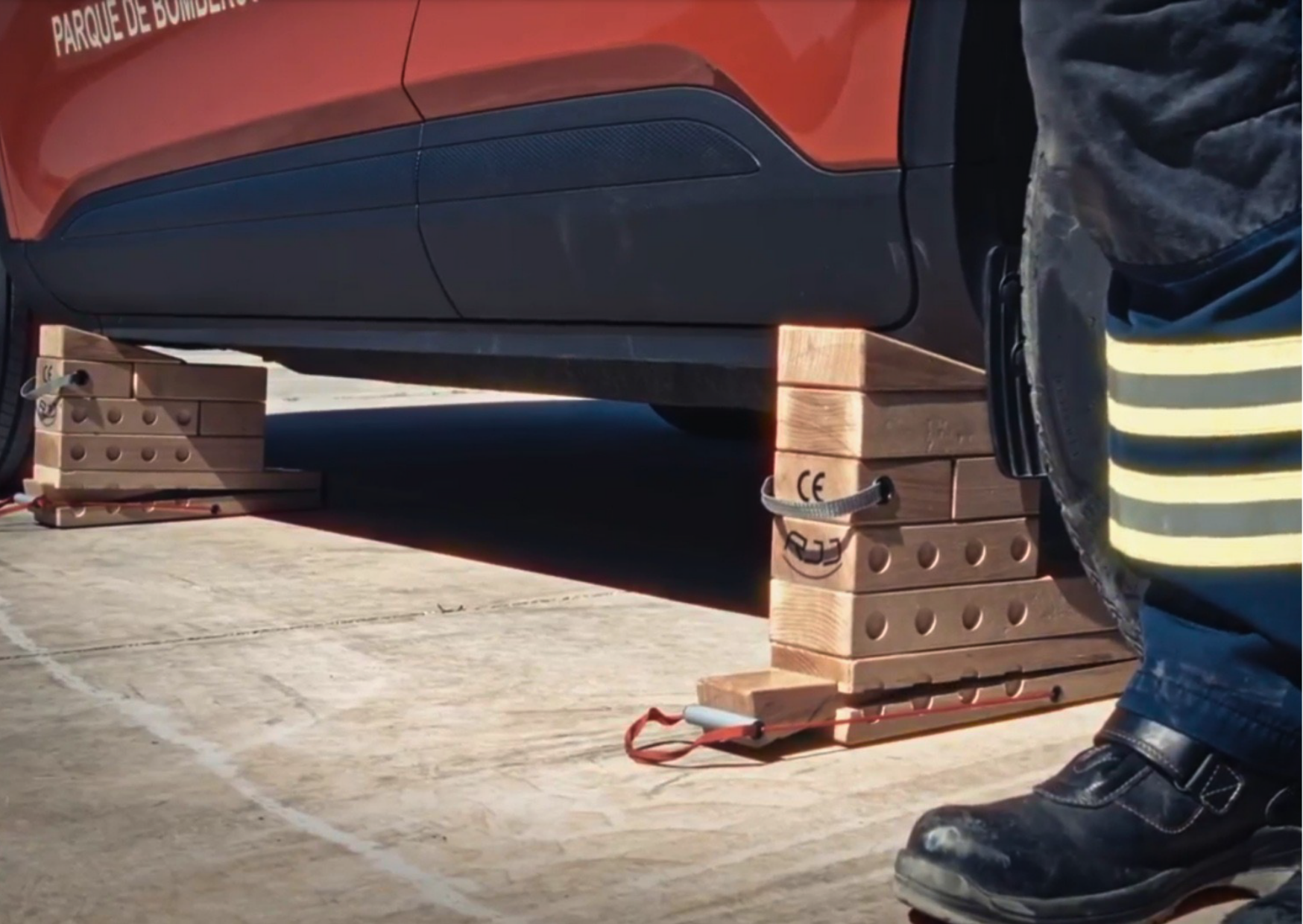

The SA-TSS Self-Adjusting Stabilisation System is designed to stabilise damaged or overturned vehicles by effectively neutralising suspension movement, including springs and shock absorbers. By creating a rigid structural block between the vehicle chassis and the ground, the system ensures a secure and controlled working environment for rescue operations.
Opis produktu
Its self-adjusting mechanism enables rapid adaptation to uneven surfaces and varying vehicle positions, including rollovers and roof-rest scenarios. The modular design allows flexible configuration using multiple wedge sizes, ensuring precise stabilisation across a wide height range. Lightweight construction and ergonomic handling allow operators to deploy and reposition units quickly, even in high-pressure rescue environments.
Key Features
- Self-adjusting stabilisation system for rapid deployment
- Neutralises suspension, springs, and dampers to create a rigid base
- Effective in rollover and roof-rest vehicle scenarios
- Adjustable working range from 7 cm to 38 cm
- Modular configuration with multiple wedge sizes
- Lightweight design enabling manual transport (2 units per hand)
- Engineered for high-load resistance under compression testing
Primary Applications
- Vehicle stabilisation
- Road traffic collision rescue
- Overturned vehicle support
- Technical rescue operations
- Fire & rescue extrication
Product-Market Insight
The SA-TSS system provides a highly adaptable and field-proven stabilisation solution for rescue teams operating in complex and unpredictable environments. Its combination of mechanical simplicity, high load capacity, and rapid deployability makes it particularly valuable for international markets prioritising safety, efficiency, and operational speed during vehicle extrication.
Technical data
| Specification | Value |
| System Type | Self-adjusting stabilisation wedges |
| Length | 36 cm |
| Width | 12 cm |
| Height | 20 cm |
| Weight | 6 kg |
| Working Range | 7 – 38 cm |
| Maximum Load (Fmax) | 10,299 kg |
| Compression Resistance | 23.8 kg/cm² |
| Material | Birch wood (Abedul) |
| Configuration | Modular wedges (24×12, 18×12, 12×12 cm + adjustable unit) |
Compliance & Certification
Compression resistance tested by AIDIMME laboratory
